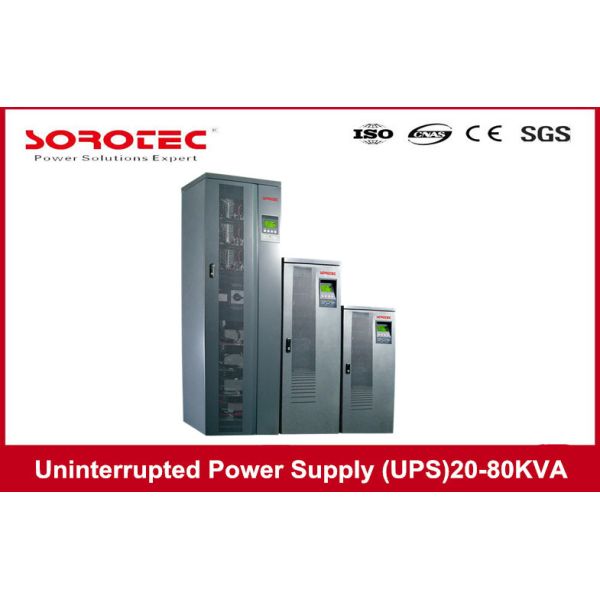

Double Conversion UPS Uninterrupted Power Supply Large Power , IGBT Technology
Key Features:
1. Double-conversion pure online UPS
2. Advanced IGBT technology rectifier technology
3. Input THDI<3%,input power factor 0.99
4. Efficiency of the machine is 94%
5. Support maximum 8 units UPS for parallel working
6. Intelligent management of battery charging and discharging
7. Twin-Chiannel line input.
8. Large LCD Graphical display panel, convenient for operation
9.Powerful overload capacity and output short protection
10.Comprehensive communication RS232/RS485,Intelligent slot,SNMP card
11.N+X parallel redundancy(Compatible to battery share in the parallel mode)
13.Emergency power off in emergency occasion(EPO Mode)
Technical Specifications of Online UPS HP9330C 208V 20-80KVA
| Model | HP9330C 20-80KVA |
| 20K | 20K-XL | 30K-XL | 40K-XL | 60K-XL
ISO | 80K-XL
ISO |
| Rated Capacity | 20KVA/16KW | 30KVA/
24KW | 40KVA/
32KW | 60KVA/
48KW | 80KVA/
64KW |
| Rated Voltage | 220VAC/208VAC Three-phase
4 line + earth line |
| Rated Frequency | 50/60HZ |
| Input |
| Voltage range | 380VAC±25% |
| Frequency range | 50/60HZ±5% |
| Wiring | Twin- channel line input |
| THDI | ＜3% |
| Power factor | ＞0.99 |
| Output |
| Voltage precision | 208VAC (±1%)；Three-phase 4
line + earth line |
| Frequency precision | 50/60HZ±0.2% |
| Power factor | 0.8 |
| Current crest ratio | 3:1 |
| Overload capacity | ≤110%for 60 minutes；
≤125％ for 10min；
≤150％ for 1min； |
| Battery |
| Charging current | 0.5~4.5A(adjustable) |
| Backup time | 7mins | Determined by the amount
of external-connected cells |
| Quantity | 28/30/32(selective)；
compatible to battery
share in the parallel mode |
| Efficiency |
| Line mode/BAT mode | 94% |
| ECO mode | 98% |
| Indication |
| LCD | I/O voltage, current, frequency,
BAT voltage, charging current value,
discharging current value,
fault display, fault, warning |
| Communications |
| Communication
interface | RS232, AS400, RS485, Service, EPO,
BAT temperature compensation, Intelligent Slot , SNMP(Option) |
| Operation
Environment |
| Temperature | 0～40℃ |
| Humidity | 0～95% (no dewfall) |
| Storage temperature | -25℃～55℃ |
| Altitude(M) | < elevation 1500m |
| Weight |
| weight(KG) | Net weight | 182.5 | 82 | 110 | 114 | 282 | 306 |
| Gross
weight | 204 | 122 | 160 | 164 | 356 | 380 |
| Dimension
(WXDXH)mm | 420 X630 X1240 | 420 X630 X950 | 490 X680 X1180 | 600 X800
X1850 |
